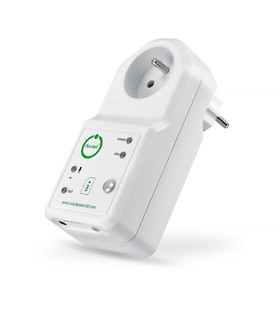

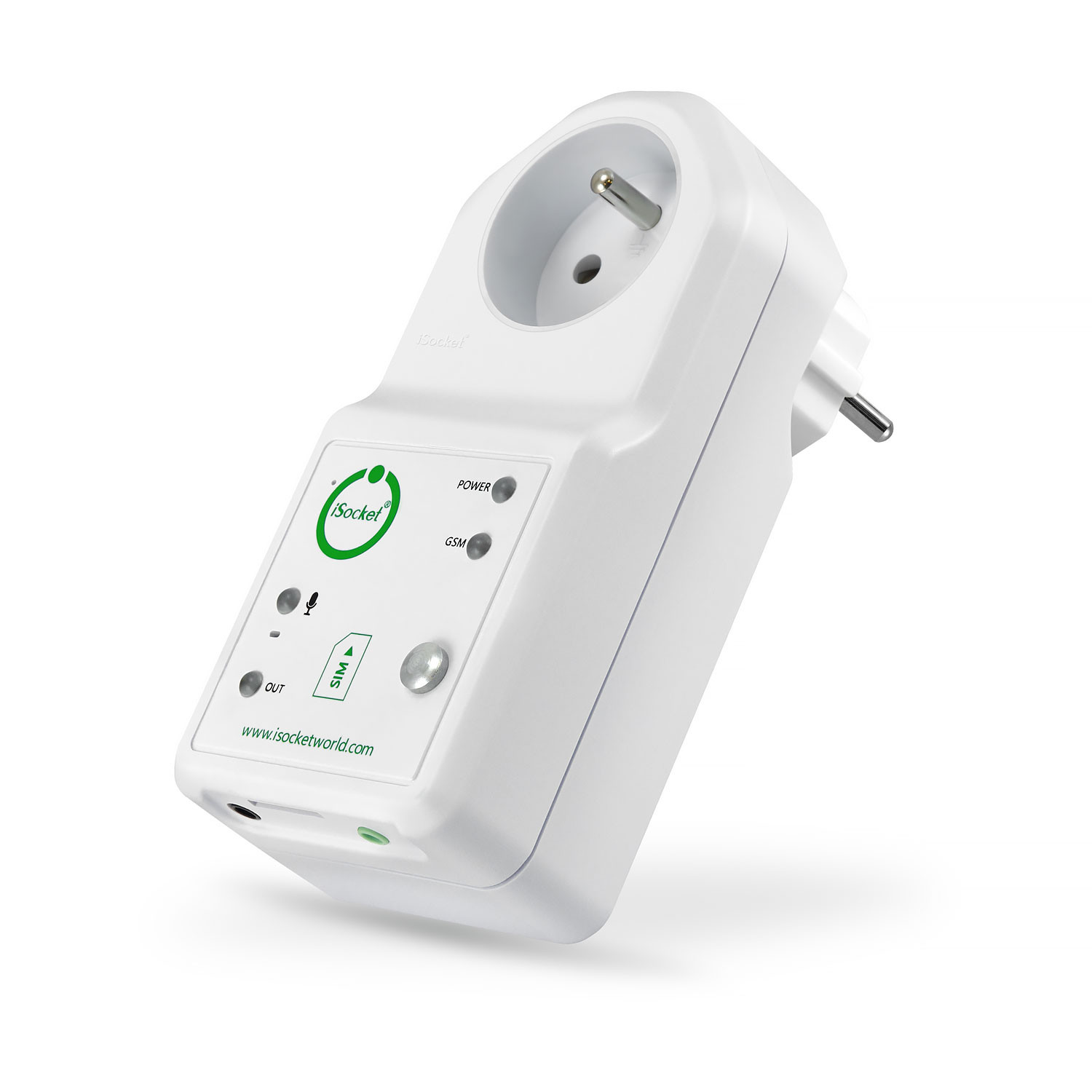

iSocket HomeGuard
6-in-1 solution to build security alarm system for your home or office with remote listening
This iSocket is a 6-in-1 solution featuring remote sound monitoring because of the built-in microphone and second micro-relay to build a monitoring system, which can trigger external low-voltage equipment, e.g. siren. This smart socket is controlled via the GSM network using standard mobile phone SMS-commands or commands from smartphone apps. You can install a contract or prepaid (PAYG) SIM-card from your favorite GSM operator.
If you want to build an alarm-monitoring system for your home or office with remote listening option and activate siren to scare thieves - iSocket HomeGuard would be your choice.
1. To the input of iSocket HomeGuard you can connect various sensors: a motion sensor, a door opening or broken glass sensor for security monitoring or water/gas leakage sensors or a smoke detector for safety monitoring. 2. Through a micro relay output you can switch an external siren or other low-voltage equipment. 3. A built-in microphone allows you to hear what is happening in the room when someone breaks in.
As easy as one-two-three.
And more...
4. A built-in temperature sensor is an extra option, which allows you to get temperature information remotely for applications where precision temperature measurements are not required. (For precision temperature monitoring please check iSocket Environment Pro).
5. A power failure alarm is also available for this model. With the unique iSocket® Power Notifier feature of iSocket® Smart Software you will be notified to your mobile phone in the event of a power failure.
6. Remote reboot and switching of up to 250VAC appliances comes as standard for this iSocket and you can configure it to perform these operations free of charge. This make this device even more outstanding.
iSocket HomeGuard - guard your home!
iSocket HomeGuard is an advanced smart socket which combines the best hardware and software technologies from a European manufacturer and no analogues on the market have the same top quality and features as iSocket® Smart Software.
I want a solution primarily for remote temperature monitoring. What is better – iSocket HomeGuard or iSocket Environment Pro?
We would recommend iSocket Environment Pro with an external temperature sensor, because this supports precision temperature monitoring. iSocket HomeGuard has a built-in temperature sensor that is affected by electronics inside the unit and cannot provide the same precision measurement as the external sensors of iSocket Environment Pro can.
This product was discontinued. Since 2021 we offer Plug-and-Go iSocket with integrated connectivity - buy here
Dane techniczne
- iSocket HomeGuard
- iSocket GSM 707
- ISGSM707FR
- CEE 7/5, French
- iSocket® Power Notifier - a feature which will notify you in the event of a power outage or when the power is restored
- Li-ion or Li-po high quality batteries with excess capacity cater for signal delays in the event of a break in the mobile network before sending the power outage alert
- Charging from internal charger about 10 hours if totally discharged
(with notification to your mobile phone)
- Home alarm system
- Remote temperature control system
- Power loss notification system
- Remote on/off reboot system
- Remote room listening system
- Gas leakage alarm
- Water leak alarm
- Burglar alarm
- Smoke or fire detection alarm
- Temperature fall/rise alerts system
- Motion detect alarm
- Door opening alarm
- Power failure alarm
- iSocket® Temperature Notifier - notifies you in the event of the room temperature falling below or rising above critical levels
- Thermometer: temperature measurement
- Thermostat: turn on/off equipment by thermostat's settings
- 110-240VAC, 50-60Hz
- Stand-by power ~1W, Green Power
- Remote turn on/off or restart of 120VAC/240VAC appliances
- Delayed start/stop, turn on/off for a certain period
- Scheduling turn on/off
- Max. switching rating 16A at 250VAC, protected with fuse
- Max. rating 4000W (16A at 250VAC); continuous resistive load
- Nominal rating 3600W
- Max. switching 24VDC/2A, no fuse, 3.5mm mini-jack at the rear of device, GREEN color
- Remote turn on/off of appliances up to 24VDC by sms or call
- Mini-jack 3.5mm connector on the rear of the device
- Unit provide 12VDC / 300mA; PTC resettable fuse 350mA
- Support logical 12VDC sensors: motion sensor, door opening detector, smoke detector, water sensor, etc.
- iSocket® Alarm Notifier – a feature which send alerts to your phone when external sensors was activated
- Support several numbers for alerts
- Relation between input and microrelay can be configured
- With adjustable calibration value to match your environment
- Factory default calibration value: 12, which means 12C (54F)
- Remote sound monitoring of a room in your absence
- Calibration of sensitive with software
- Scheduling some functions to be executed at a particular time
- Scheduling turn on/off relay
- Scheduling sending status information
- Scheduling sending temperature information
- Scheduling activation/deactivation of Alarm Function
- Three security levels: password, list of phone numbers, limited configuration interval
- Support several security numbers to limit acces to management and configuration
- Unique feature of iSocket® Smart Software which allow you to perform some operations, e.g. remote switching or reboot, absolutely free (no fee for a call or SMS)
- No service fee to manufacturer or dealer
- 4-band worldwide GSM 850MHz/900MHz/1800MHz/1900MHz
- iSocket® Online 24/7 - gets the device back online even after a break in the mobile network
- Automatic date and time synchronization from mobile network
- Integrated
- Push-push type, plug-in SIM card 1.8V/3V
- Standard full size
- GSM contract or prepaid (PAYG) SIM-cards
- For manual switching of main relay and for reset to factory defaults
- POWER green
- GSM blue
- MICROPHONE yellow
- OUT red
- SMS control and configuration with traditional "old" phones
- Management through apps for smart phones
- RUNTIME
- Indoor use, dry conditions
- 0C – +30C (32F – 86F) *According to certifications (official range)
- -15C – +40C (5F – 104F) *According to experience
- -30C – +50C (-22F – 122F)
- CE mark
- 1 year (for some countries 2 or 3 years)
- Designed and manufactured in Finland
